LIUZHOU ZODE MACHINERY SCI-TECH CO.,LTD. Your satisfaction is our pursuit Quality first, 24 hours online service
5 Years
| Ask Lasest Price | |
| Brand Name : | FEXIK |
| Model Number : | F-T8 |
| Certification : | ISO9001/CE |
| Price : | USD 240000-270000 USD/SET |
| Payment Terms : | T/T |
| Supply Ability : | 15 sets/year |
| Delivery Time : | 120-150days |
paper towel production machine tissue roll wrapping machine
1. Machine Appearance
2. General Description
This packing machine is adopted to wrap toilet tissue maxi roll tissue and kitchen towel rolls with a wide range of packing configuration.
It is equiped with four-channel motorized belt conveyor, about 4meters long, controlled by inverter, for rolls accumulation. The group includes series of photo-eyes sensors for controlling the right position and the presence of rolls. The tissue paper rolls are transported by belt; they are launched in the number of lanes according to packing configuration as it is needed, set on HMI, in single layer or double layers into in-feed section, where they are transported and stacked by group of carbon bars mounted on trimming belts. Carbon bars convey the group of rolls on the elevator, which leads them into the area of folding. The foil positioning section brings the packaging film directly above the rolls by transport belts. The folding process is performed by universal side folders, as well bottom folder and counter folder. Side folding is done by innovative air supported mechanical folders. The overhead pack transport section continuously moves the pack through section of side folding and rotating bottom sealer and deliver pack to side sealing section. All motions and functions are fully controlled by the 21 independent servo motors and 6 inverter motors.
| Name | Technical Parameters |
| Production speed | 35-140 packs/min |
| Max mechanical speed | 160 packs/min |
| Infeed | 1-5 lanes |
| Layers | 1 or 2 layers design |
| Average format changeover time | 10-30 min |
| Roll diameter | 90-160(200)mm(3.5”-6.3”)(7.9”) |
| Roll length | 90-300(3.5”-11.8”) |
| Pack width | 100-650mm(3.9”-25.6”) |
| Pack length | 90-630mm(3.5”-24.8”) |
| Pack height | 90-270mm(300mm) (3.5”-10.6”)(11.8”) |
| Power supply | 380V 50HZ/60HZ |
| Air Consumption | ＜500 L/Min |
| Wrapping Material | PE,LDPE |
| PE thickness,LDPE | 25-50 microns |
| Real Power consumption | 32KW |
| Machine weight | About 8000kg |
3. Main Features and Advantages
1)Packing Material: plastic film
2)Infeeding lanes: 1 to 5lanes.
3)Layer: 1 to 2 layer.

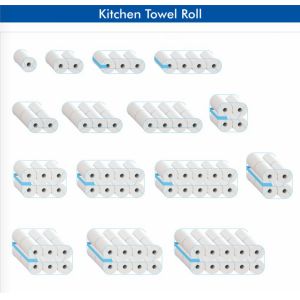

4)Configuration:
Maxi roll: 1 roll pack, 2rolls pack
Kitchen towel: 1, 2, 3rolls .....20rolls pack
toilet rolls: 2, 3, 4, 5, 6, 8, 9 rolls .....50rolls pack.
5)Speed: 35packs- 160 packs per min.
welcome to contact us!
|
|
